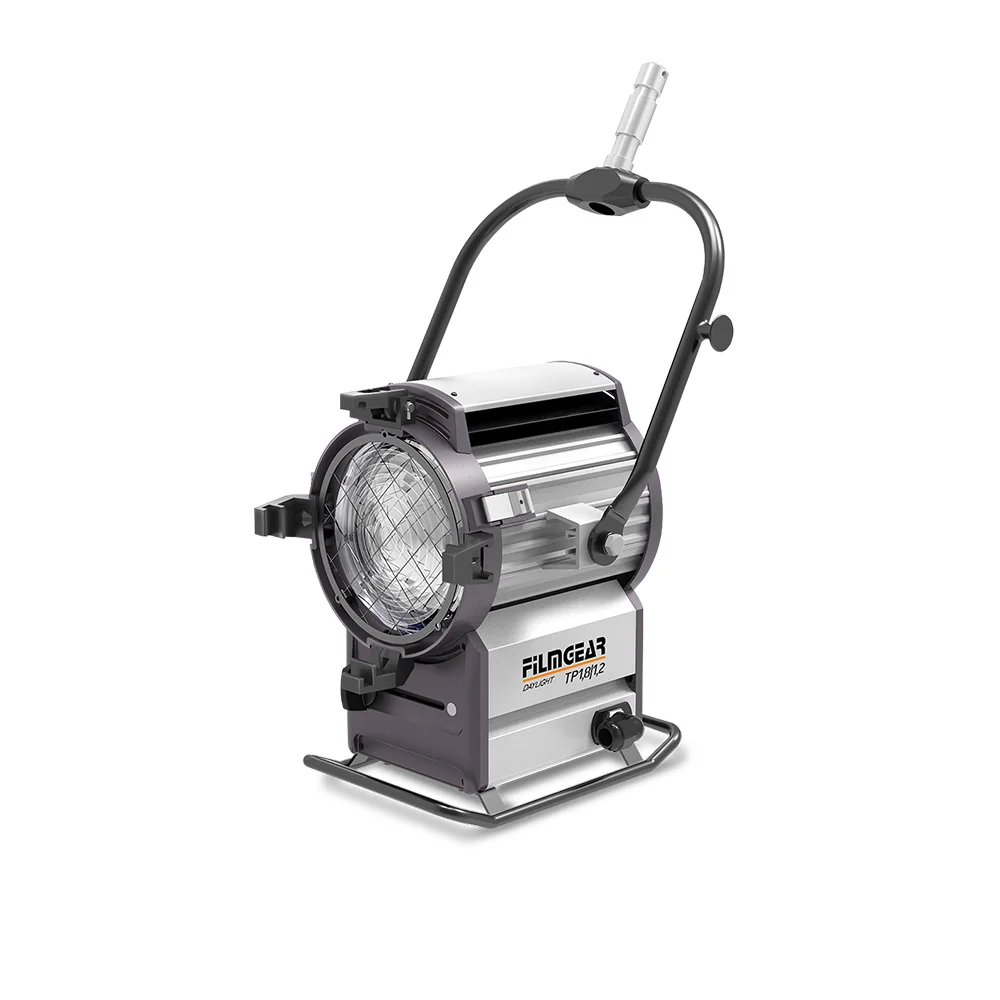

Daylight Fresnel
1.8kW/1.2kW SE

Identity No.: L01812DS
Capacity: 1,800W / 1,200W
Lamp Bulb Voltage: 140V / 100V
Fresnel Lens: Ø175mm (6-7/8 in.)
Lamp Type:
CSR 1800/SE/HR or HMI 1800W/SE
MSR 1200/HR or HMI 1200W/SE
Color Temp.: 5600K
Lamp Holder: G38
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 180 ºC / 170 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 6 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +45º ~ 0º ~ -45º
Weight (Lamphead): 9.7 kg
Weight (with barndoor): 10.7 kg
