Electronic Ballast
18kW/12kW V3 (300hz)
Identity No.: B181PDU3 (300Hz, DMX) B181PNU3 (300Hz)
Max. Power: 19,300VA
Input Voltage: 180 - 250V AC
Input Current: 107 - 77A
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
300Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 125A
No-load Voltage: 360V
Max. Ambient Temp.: 45 ºC
Class / IP Rating: 1 / IP 22
Weight: 65.0 kg
Electronic Ballast
12kW/6kW V3 (300hz)
Identity No.: B126PDY3 (300Hz, DMX) B126PNY3 (300Hz)
Max. Power: 13,200VA
Input Voltage:
180 - 250V (at 12kW)
90 - 125V (at 6kW)
180 - 250 (at 6kW)
Input Current: 73 - 53A
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
300Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 100A
No-load Voltage: 360V
Max. Ambient Temp.: 45 ºC
Class / IP Rating: 1 / IP 22
Weight: 54.0 kg

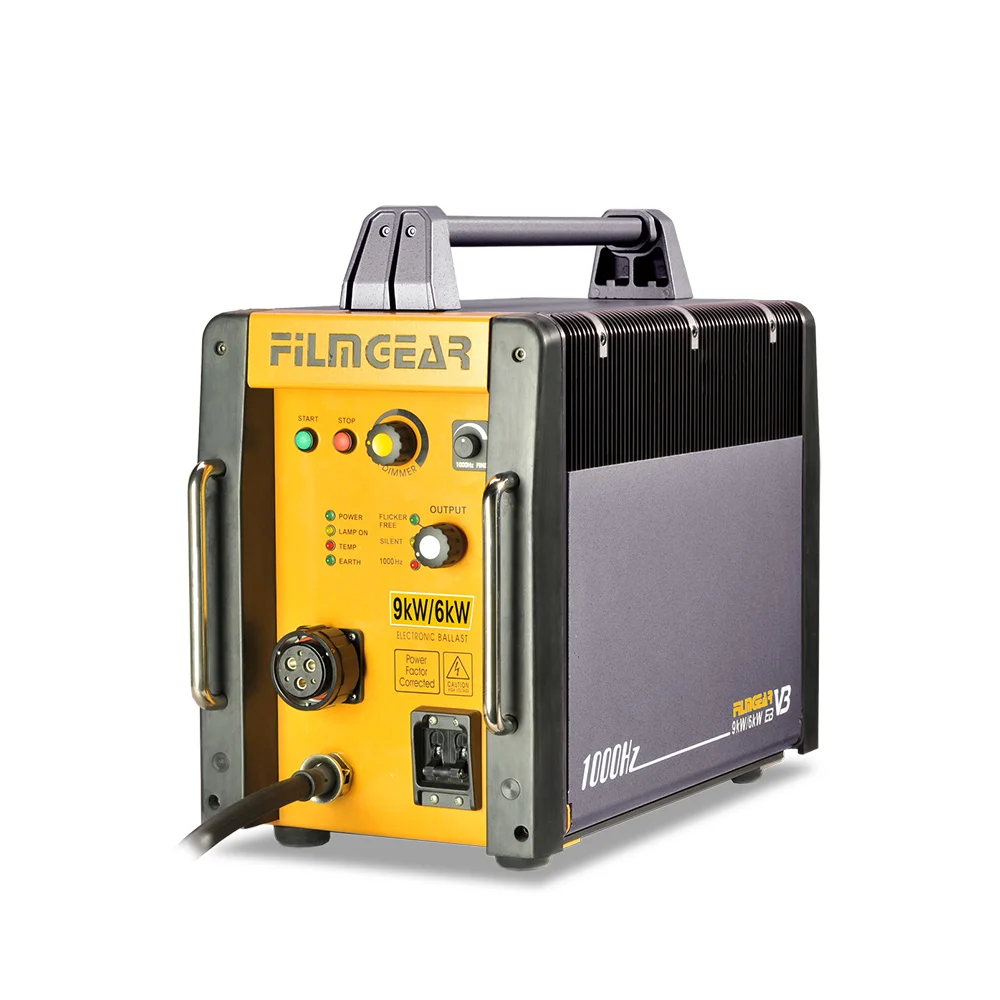

Electronic Ballast
9kW/6kW V3 (1000Hz)
Identity No.: B096PDK3 (1000Hz, DMX) B096PNK3 (1000Hz)
Max. Power: 9,800VA
Input Voltage: 180 - 250V AC
Input Current: 54 - 39A
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent) 75Hz (Flicker Free) 1000Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 100A
No-load Voltage: 360V
Max. Ambient Temp.: 45 ºC
Class / IP Rating: 1 / IP 22
Weight: 27.8 kg
Electronic Ballast
9kW/6kW V3 (300Hz)
Identity No.: B096PDU3 (1000Hz, DMX) B096PNU3 (1000Hz)
Max. Power: 9,800VA
Input Voltage: 180 - 250V AC
Input Current: 54 - 39A
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent) 75Hz (Flicker Free) 300Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 100A
No-load Voltage: 360V
Max. Ambient Temp.: 45 ºC
Class / IP Rating: 1 / IP 22
Weight: 27.8 kg

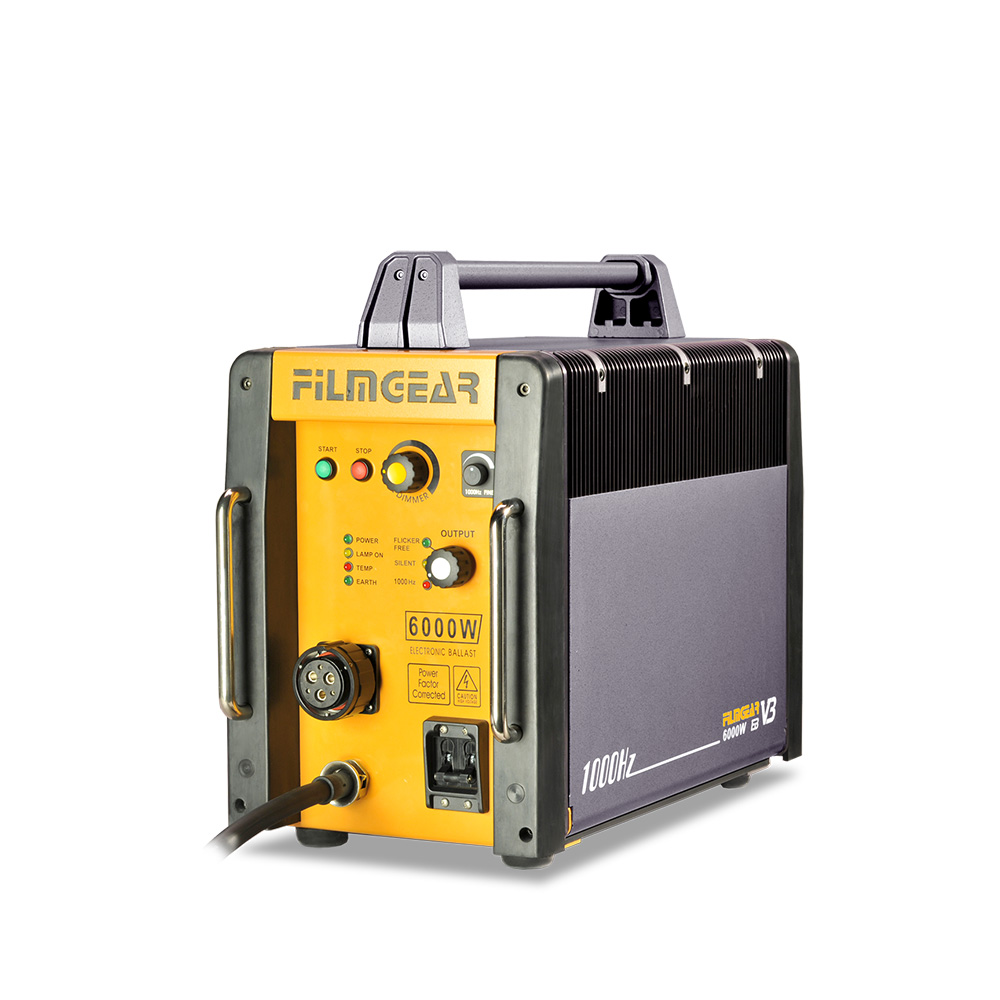

Electronic Ballast 6000W V3 (1000Hz)
Identity No.: B096PDK3 (1000Hz, DMX) B096PNK3 (1000Hz)
Max. Power: 9,800VA
Input Voltage: 180 - 250V AC
Input Current: 54 - 39A
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent) 75Hz (Flicker Free) 1000Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 100A
No-load Voltage: 360V
Max. Ambient Temp.: 45 ºC
Class / IP Rating: 1 / IP 22
Weight: 27.8 kg
Electronic Ballast 6000W V3 (300Hz)
Identity No.: B060PDU3 (300Hz, DMX) B060PNU3 (300Hz)
Max. Power: 6,600VA
Input Voltage: 180 - 250V AC
Input Current: 37 - 26A
Frequency: 50Hz or 60Hz
Output Mode: 60Hz (Silent) 75Hz (Flicker Free) 300Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 50A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 27.8 kg
Electronic Ballast 4kW/2.5kW V3 (1000Hz)
Identity No.: B042PDK3 (1000Hz, DMX) B042PNK3 (1000Hz)
Max. Power: 4,400VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
24 - 18A @180 - 250V AC
49 - 35A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
1000Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 100A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 21.7 kg
Electronic Ballast 4kW/2.5kW V3 (300Hz)
Identity No.: B042PDU3 (300Hz, DMX) B042PNU3 (300Hz)
Max. Power: 4,400VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
24 - 18A @180 - 250V AC
49 - 35A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
300Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 100A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 21.7 kg
Electronic Ballast 2500W V3 (1000Hz)
Identity No.: B025PEK3 (1000Hz, DMX) B025PNK3 (1000Hz)
Max. Power: 2,750VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
15 - 11A @180 - 250V AC
31 - 22A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
1000Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 50A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 14.0 kg
Electronic Ballast 2500W V3 (300Hz)
Identity No.: B025PEX3 (300Hz, DMX) B025PNX3 (300Hz)
Max. Power: 2,750VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
15 - 11A @180 - 250V AC
31 - 22A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
300Hz (High Speed)
Power Factor: 0.99 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 50A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 14.0 kg
Electronic Ballast 1.8kW/1.2kW/575W V3 (1000Hz)
Identity No.: B518PEK3 (1000Hz, DMX) B518PNK3 (1000Hz)
Max. Power: 1,980VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
11 - 8A @180 - 250V AC
22 - 16A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
1000Hz (High Speed)
Power Factor: 0.98 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 25A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 9.5 kg

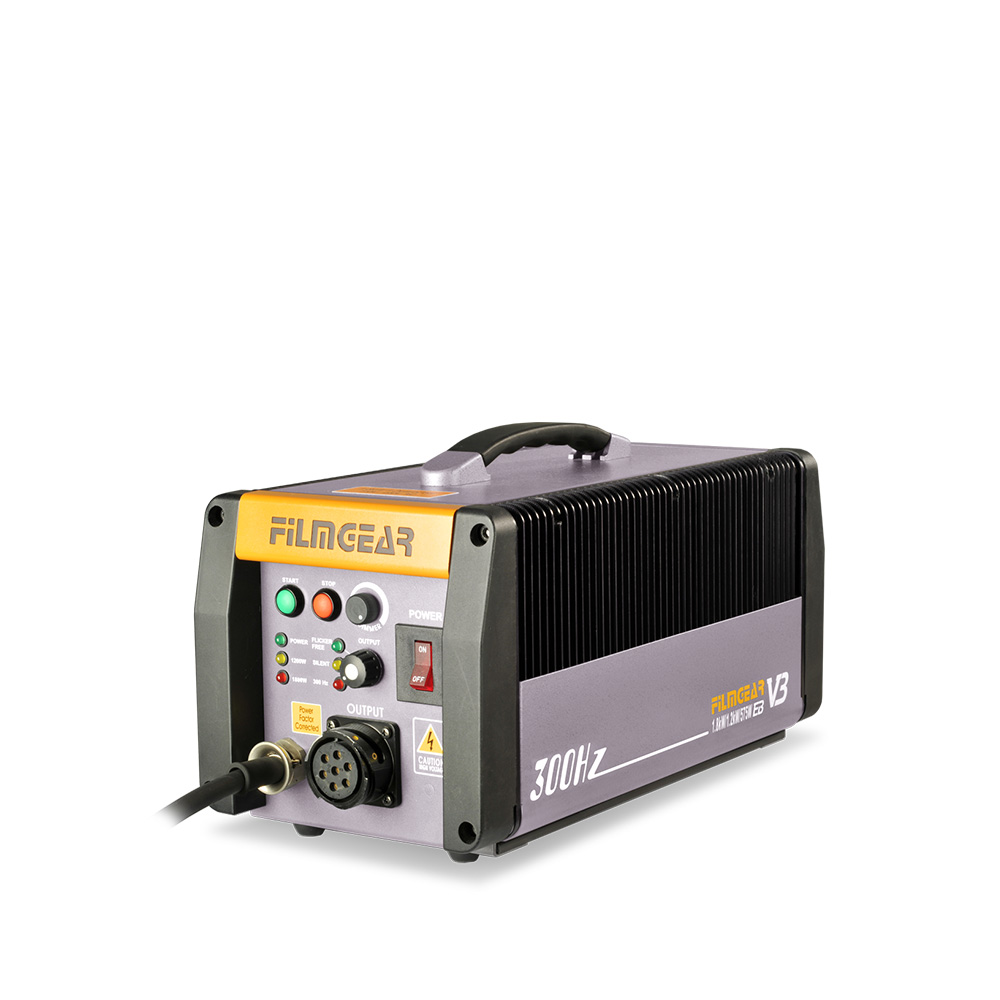

Electronic Ballast 1.8kW/1.2kW/575W V3 (300Hz)
Identity No.: B518PEX3 (300Hz, DMX) B518PNX3 (300Hz)
Max. Power: 1,980VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
11 - 8A @180 - 250V AC
22 - 16A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
300Hz (High Speed)
Power Factor: 0.98 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 25A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 9.5 kg
Electronic Ballast 1.2kW/575W V3 (1000Hz)
Identity No.: B015PEK3 (1000Hz, DMX) B015PNK3 (1000Hz)
Max. Power: 1,320VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
7 - 5A @180 - 250V AC
15 - 11A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
1000Hz (High Speed)
Power Factor: 0.98 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 25A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 7.4 kg
Electronic Ballast 1.2kW/575W V3 (300Hz)
Identity No.: B015PEX3 (300Hz, DMX) B015PNX3 (300Hz)
Max. Power: 1,320VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
7 - 5A @180 - 250V AC
15 - 11A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
300Hz (High Speed)
Power Factor: 0.98 (PFC)
Efficiency: 91% (PFC)
Dimming Control: 55%
Fusing: 25A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 7.4 kg
Electronic Ballast 800W/575W V3 (1000Hz)
Identity No.:
B008PEK3 (1000Hz, DMX)
B008PNK3 (1000Hz)
Max. Power: 880VA
Input Voltage:
90 - 125V AC
180 - 250V AC
Input Current:
5 - 4A @180 - 250V AC
10 - 7A @ 90 -125V AC
Frequency: 50Hz or 60Hz
Output Mode:
60Hz (Silent)
75Hz (Flicker Free)
1000Hz (High Speed)
Power Factor: 0.98 (PFC)
Efficiency: 87% (PFC)
Dimming Control: 55%
Fusing: 25A
No-load Voltage: 360V
Max. Ambient Temp.: 50 ºC
Class / IP Rating: 1 / IP 22
Weight: 7.4 kg
