Aurora 450C (RGBW/WW/CW)
Identity No. : L0045HPC2
Max. Capacity: 450W
Voltage: 95-260V AC / 22-36V DC
Current: 2.1A @ 220V AC / 19A @ 24V DC
Color Temp. : 2700K - 10000K
Color: R/G/B/W/CW Color Mixing
CRI: Average >95
TLCI: Average >95
Dimming: 0 - 100%
Wireless DMX (Option): LumenRadio - TimoTwo
Control Signal: DMX / RDM
DMX Channel: Varies depending on mode selection
LED Life: Approx. 30,000 Hrs
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 60 ºC
Max. Ambient Temp.: 45 ºC
Operating Range: +90º ~ 0º ~ -90º
Weight (Lamphead): 15.0 kg

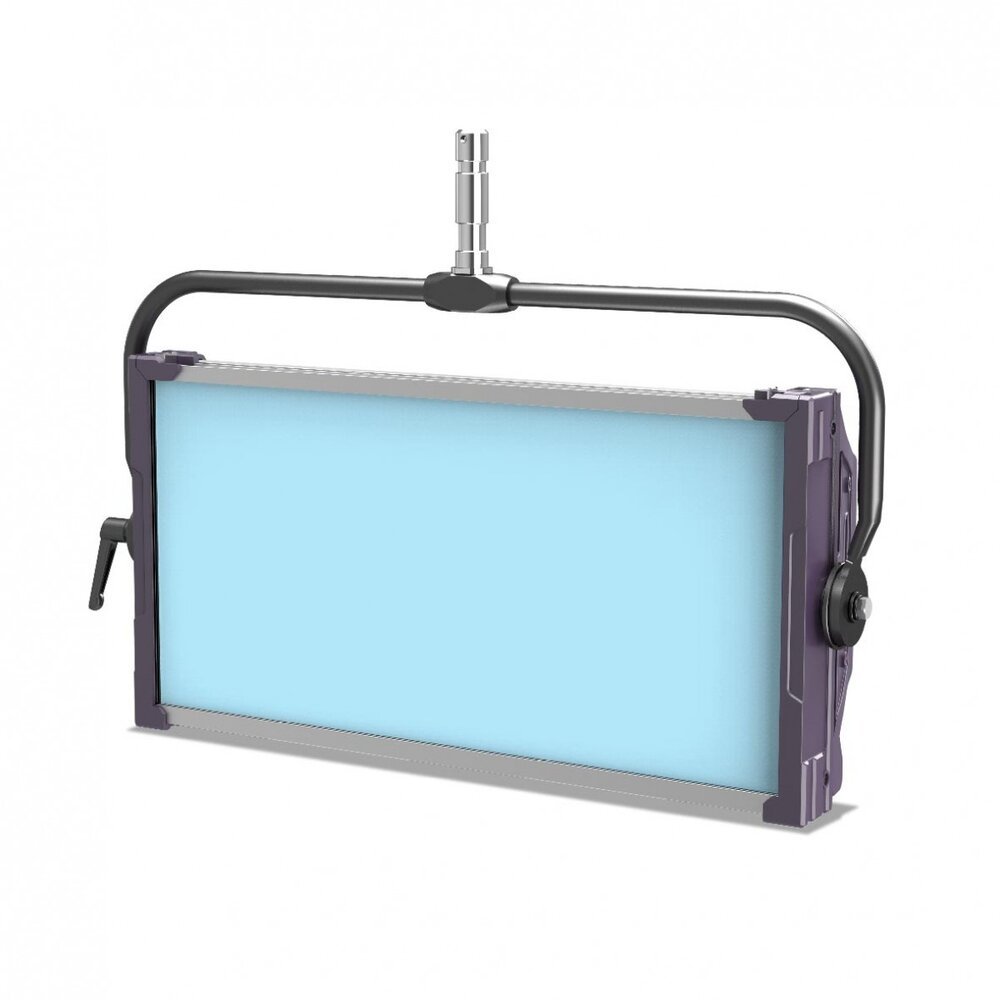

Aurora 400C (RGBW/CW)
Identity No. : L0040RGB
Max. Capacity: 400W
Voltage: 95-260V AC / 22-36V DC
Current: 2A @ 220V AC / 17A @ 24V DC
Color Temp. : 2700K - 10000K
Color: R/G/B/W/CW Color Mixing
CRI: Average >95
TLCI: Average >95
Dimming: 0 - 100%
Control Signal: DMX / RDM
DMX Channel: Varies depending on mode selection
LED Life: Approx. 30,000 Hrs
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 60 ºC
Max. Ambient Temp.: 45 ºC
Operating Range: +90º ~ 0º ~ -90º
Weight (Lamphead): 13.0 kg
Aurora 220C (RGBW/CW)
Identity No. : L0022HPC2
Max. Capacity: 220W
Voltage: 95-260V AC / 22-36V DC
Current: 1A @ 220V AC / 9.5A @ 24V DC
Color Temp. : 2700K - 10000K
Color: R/G/B/WW/CW Color Mixing
CRI: Average >95
TLCI: Average >95
Dimming: 0 - 100%
Wireless DMX (Option): LumenRadio - TimoTwo
Control Signal: DMX / RDM
DMX Channel: Varies depending on mode selection
LED Life: Approx. 30,000 Hrs
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 60 ºC
Max. Ambient Temp.: 45 ºC
Operating Range: +90º ~ 0º ~ -90º
Weight (Lamphead): 10 kg

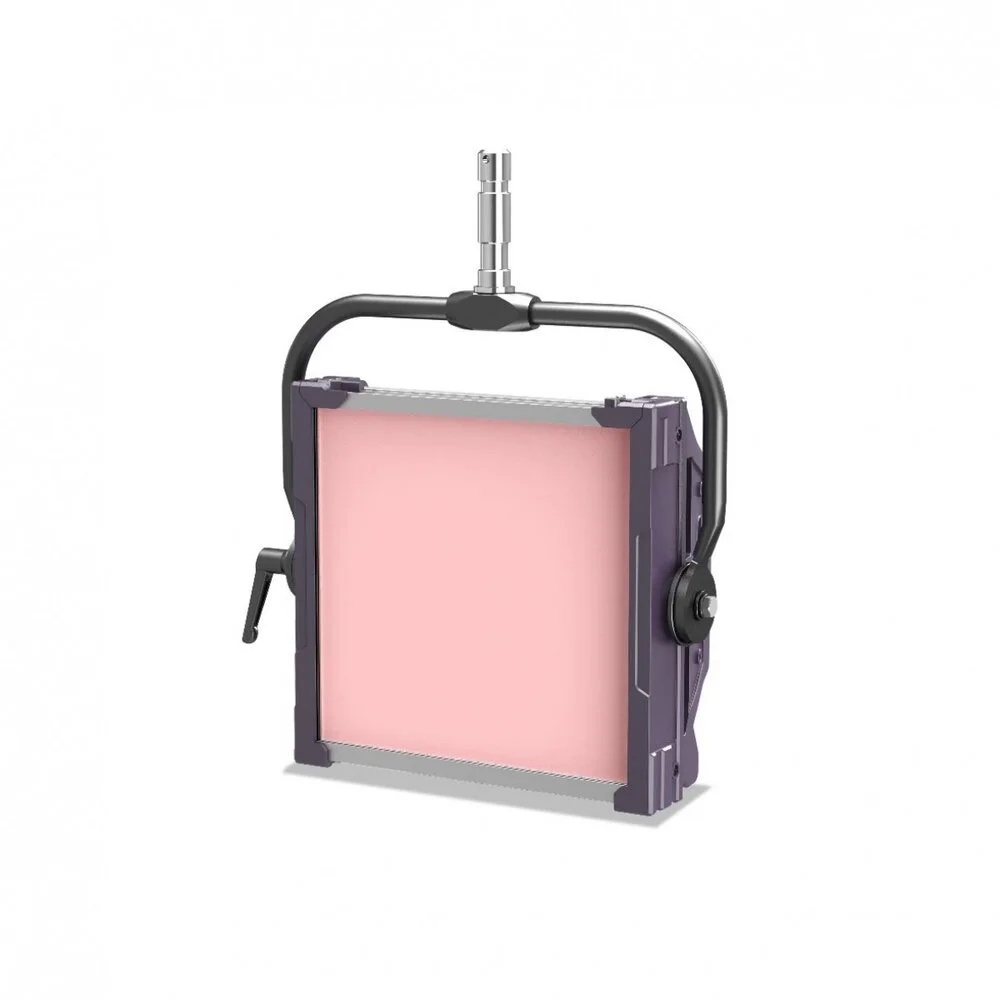

Aurora 200C (RGBW/CW)
Identity No. : L0020RGB
Max. Capacity: 200W
Voltage: 95-260V AC / 22-36V DC
Current: 1A @ 220V AC / 8.5A @ 24V DC
Color Temp. : 2700K - 10000K
Color: R/G/B/W/CW Color Mixing
CRI: Average >95
TLCI: Average >95
Dimming: 0 - 100%
Control Signal: DMX / RDM
DMX Channel: Varies depending on mode selection
LED Life: Approx. 30,000 Hrs
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 23
Max. Surface Temp.: 60 ºC
Max. Ambient Temp.: 45 ºC
Operating Range: +90º ~ 0º ~ -90º
Weight (Lamphead): 9.0 kg
Aurora 400B (Bi-Color)
Identity No. : L004BSCP
Max. Capacity: 400W
Voltage: 30 - 48V DC
Current: 8.7A @ 46V
Color Temp. : Adjustable 2700K - 6000K
CRI: >95
TLCI: >95
Dimming: 0 - 100%
Control Signal: DMX 512
DMX Channel: 2
LED Life: Approx. 30,000 Hrs
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 60 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 1 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +90º ~ 0º ~ -90º
Weight (Lamphead): 10.0 kg
Aurora 200B (Bi-Color)
Identity No. : L002BSCP
Max. Capacity: 200W
Voltage: 48V DC
Current: 4.2A @ 48V
Color Temp. : Adjustable 2700K - 6000K
CRI: >95
TLCI: >95
Dimming: 0 - 100%
Control Signal: DMX 512
DMX Channel: 2
LED Life: Approx. 30,000 Hrs
Stirrup: Ø28mm (1-1/8 in.) Spigot
Class / IP Rating: 1 / IP 20
Max. Surface Temp.: 60 ºC
Max. Ambient Temp.: 45 ºC
Min. Distance to Illuminated Object: 1 m
Min. Distance to Flammable Object: 0.5 m
Operating Range: +90º ~ 0º ~ -90º
Weight (Lamphead): 6.0 kg
